Features of Air to Water Heat Pump by Air Source High Efficiency
Copeland special compressor: more suitable for stable operation
under high temperature and high pressure, longer service life.
High efficiency titanium gold heat exchanger: strong corrosion
resistance, not easy to touch dust, self-cleaning, durable and high
efficiency heat absorption.
Four-way reversing valve: can change direction instantly and
operate under the minimum pressure difference, safe and more
reliable.
Schneider contactor: international famous brand, long service life,
low voltage start non adhesion, safe and more reliable.
Intelligent electronic control chip: water temperature, water
supply, water level, start time can be set and adjusted freely.
High efficiency tank heat exchanger: high convection design of fin
threaded copper tube, high heat transfer efficiency, corrosion
resistance and scaling.
Electronic expansion valve: accurately regulate refrigerant flow
and pressure, facilitate full evaporation, improve energy
efficiency.
Fan blade: optimized blade, large air volume, low noise, strong
anti-aging performance, long service life.
Three point temperature control, real-time detection of water
temperature
Leomon heat pumps air domestic water tank adopts three-point
temperature control technology, which can detect the water
temperature in real time to ensure that hot water is available
immediately.
Integrated process of floor heating and air conditioning reduces
installation faults
In the strategic deployment of "integration of host parts" for
Leomon heat pumps floor heating air conditioners and ultra-low
temperature heating machines, Leomon heat pumps hydraulic balancer
and floor heating air conditioners integrator have been released to
reduce the installation threshold and installation faults, save
installation time, and improve the quality of the whole machine and
the energy efficiency of the system.
Some specifications of Air to Water Heat Pump by Air Source High Efficiency
| Spec. | DKFXRS-9I/CY | DKFXRS-11I/CY | DKFXRS-11II/CY | DKFXRS-16I/CY | DKFXRS-16II/CY | DKFXRS-19II/CY | DKFXRS-38II/CY |
| Nominal heating at room temperature・(kW) | 9.6 | 10.9 | 10.8 | 16 | 16.4 | 17.4 | 38.9 |
| Nominal power consumption at room temperature(kW〕 | 2.17 | 2.63 | 2.7 | 3.9 | 4.1 | 4.6 | 8.82 |
| Low temperature heating(kW) | 4.1 | 4.65 | 4.8 | 7.8 | 7.5 | 8.5 | 17.6 |
| Low temperature power consumption(kW) | 1.85 | 2.1 | 2.16 | 3.37 | 3.4 | 3.68 | 7.3 |
| Maximum input power(kW) | 3 | 4.2 | 4.2 | 6.6 | 6.8 | 8.5 | 17 |
| Maximum current(A) | 16 | 23 | 8A | 32 | 12 | 15 | 30 |
| Power Spec.(Hz) | 220V-50 | 220V-50 | 380V3N-50 | 220V-50 | 380V 3N-50 | 380V3N-50 | 380V 3N-50 |
| Refrigerant/charge amount | R22/2500g | R22/5600g | R22/5600g | R22/6000g | R22/6000g | R22/6500g | R22/6500gx2 |
| noisedb(A) | <55 | <62 | <62 | <65 | <65 | <66 | <68 |
| Water resistancekPa | <55 | <55 | <55 | <100 | £100 | <65 | <65 |
| Anti-shock level | I | I | I | I | I | I | I |
| waterproof level | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Circulation port diameter | DN20 | DN32 | DN32 | DN32 | DN32 | DN32 | DN40 |
| Unit size (mm) | 1010x350x835 | 1030x410x1390 | 1030x410x1390 | 1030x410x1390 | 1030x410x1390 | 780x820x1700 | 1550x780x1700 |
| Unit Weight(kg) | 87 | 142 | 142 | 148 | 149 | 265 | 435 |

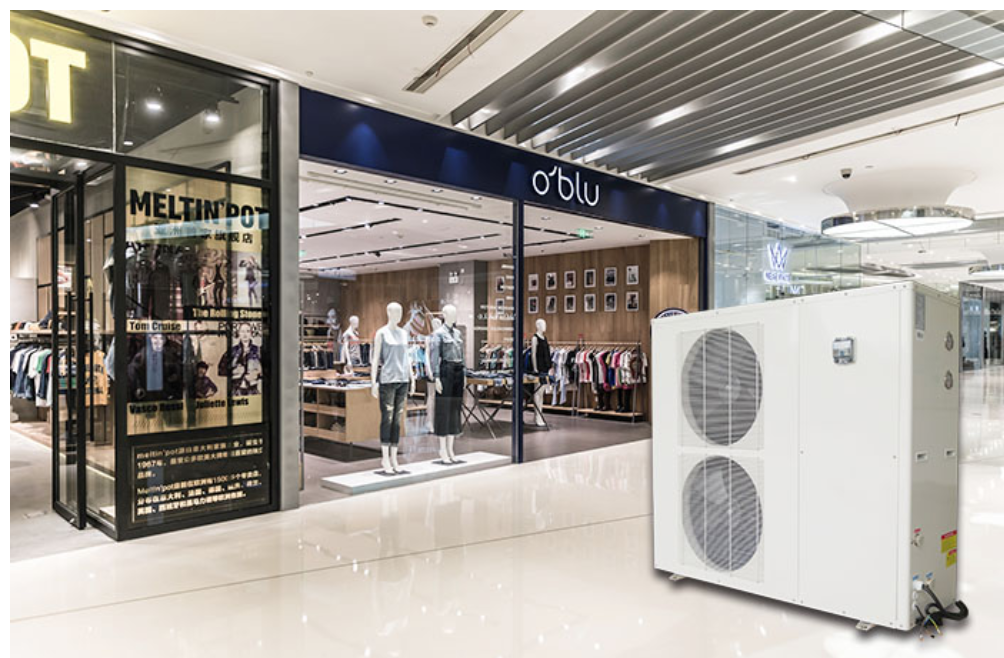

Some projects of Air to Water Heat Pump by Air Source High
Efficiency
