Features of Air to Water Source Heat Pump HVAC heating System
Air to Water Source Heat Pump system
Heat pump features:
1) Multiple protections to protect the compressor and the heat
exchanger.
2) With auxiliary heating control, circulation pump control.
3) Optional modular controller is available.
4) With timer function.
5) Adjustable defrosting according to different weather conditions.
6) Stable water flow switch .
7) With terminal for indoor thermostat, starting or standby the heat
pump.
8) Air exchanger (fin-coil) with hydrophilic coating.
9) Anti-corrosion case: durable coating; no-screw design with
stainless steel bolts and nuts,no rust.
10)Simple installation: can be placed on roof top, balcony, yard, or
basement.
11)Low noise fan motor. Long lifespan up to 15 years.
12)Modular design: We can add on more units according to user's
requirement.
13)All weather operation: Running without being effected by
weather, even snow or rain.
14)Environment protection: No pollution and waste needs to
discharge in entire working cycle.
15) Economy: The running costs of a heat pump can be less than those of
a traditional gas boiler heating system.
Company introduction
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical
personnel, and constantly overcome the technical bottlenecks in the
field of air energy water heater. We have obtained 120 invention
patents, more than 350 other patents, and participated in the
preparation of 25 national standards.
Products series: swimming pool/spa air source heat pumps
All in one triple multifunctional heat pumps: heating(Central
heating ,floor heating, radient heating)+cooling+ hot water or
seperate function
Heat pumps water heater
as leader for air source heat pumps, decades experience,authorized
over100 patents, leader for swimming pool air source heat pumps and
other pumps, member for editing heat pumps field standards, strong
and professional technical team
Our strong and professional technical and marketing team ready to
make best service!
Pre order(Inquiry progress):
Check with customer about usage, request specifications, enviroment
and other request
Make details proposal/offer to customer
Order Processing
Machine installed and tested by QA engineers.
Ensure all the products we provide are qualified and new. The
working life of the main engine is 15 years.
Construct and install the heat pump according to national relevant
policies strictly and ensure high quality delivery on time.
Test and debug the equipments strictly to ensure the safety and
stability.
During the delivery, provide comprehensive and professional
technical training on instructions and maintenance to customers
After sale service
2 years warranty
Feedback and solution will be provided within 1 working day
Free technical support!

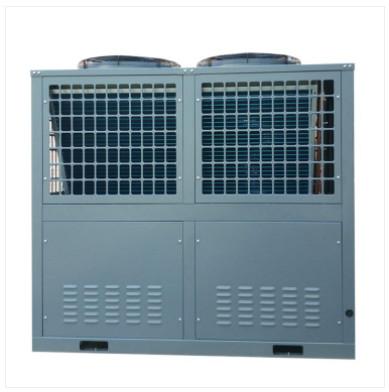

Some specifications of Industrial Air Source Heat Pump Air To Water
Chiller
Welcome to contact us for further details!
| Spec. | DKFXRS-19II/R | DKFXRS-38II/R | DKFXRS-95II/R | DKFXRS-190II/R |
| Nominal heating capacity at room temperature(kW) | 18.6 | 38.8 | 90 | 190 |
| Nominal heating at room temperature(kW) | 4.5 | 8.8 | 19.5 | 43 |
Low-temperature
nominal heating
capacity(kW) | 8.6 | 17.7 | 42 | 84 |
| Low temperature nominal heating(kW) | 3.7 | 7.35 | 16.3 | 32.6 |
| Maximum input power(kW) | 8.3 | 17 | 40 | 80 |
| Maximum current(A) | 15 | 30 | 88 | 176 |
| Power Specifications(Hz) | 380V3N ~ 50 | 380V3N ~ 50 | 380V 3N ~ 50 | 380V 3N ~ 50 |
| Refrigerant/charge amount | R22/6500g | R22/6700gx2 | R410A/8500gX2 | R410A/8500gX4 |
| noisedb(A) | <66 | <68 | <78 | <81 |
| Water resistancekPa | <100 | <100 | <100 | <123 |
| Anti-shock level | I |
| waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
Caliber of inlet
and outlet | DN32 | DN40 | DN50 | DN75 |
| Unit size (mm) | 780x820x1700 | 1550x780x1700 | 2206x1030x2170 | 2206x2020x2170 |
| Unit Weight(kg) | 263 | 431 | 750 | 1200 |
