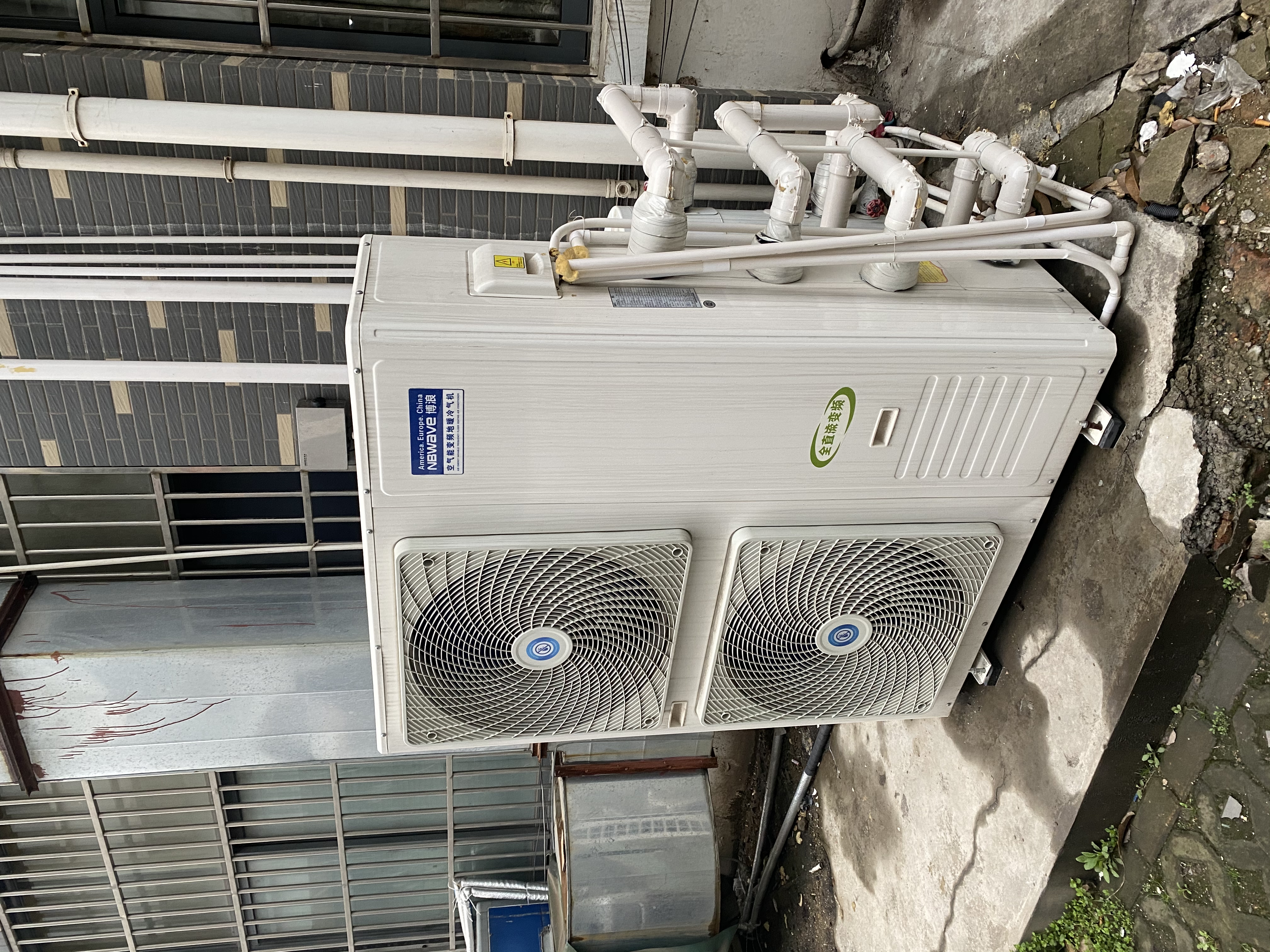

Features of Air to Water Source Heat Pump HVAC heating System
Intelligent System
In the traditional air conditioning system, the heat pump and the
indoor unit need to be separately controlled, which operation is
more complicate.It is more likely to increase running cost due to
improper operation.Wisdom Star adopts a new intelligent control
concept,which only needs to monitor the operation mode and
operation status of the main unit and the indoor unit through the
temperature control panel on the indoor side.User-friendly man
machine interface for easy operation.
. Room Thermostat
Performance feature
·Air conditioning, floor
heating two in one control
·Terminal and heat pump
online control
·High, middle,low auto fan speed
adjustment
·Keyboard lock
·Room temperature setting and
display
·Timer switch, time, date, week
display
·Heat Pump Control Panel
Running mode
Summer
·Fan coil heating
-Excessive season
·Ventilation,
dehumidification
Winter
·Fan coil cooling
·Floor heating
Fan coil +Floor heating
intelligent operation
Four seasons
·Hot water
Company introduction
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical
personnel, and constantly overcome the technical bottlenecks in the
field of air energy water heater. We have obtained 120 invention
patents, more than 350 other patents, and participated in the
preparation of 25 national standards.
Products series: swimming pool/spa air source heat pumps
All in one triple multifunctional heat pumps: heating(Central
heating ,floor heating, radient heating)+cooling+ hot water or
seperate function
Heat pumps water heater
as leader for air source heat pumps, decades experience,authorized
over100 patents, leader for swimming pool air source heat pumps and
other pumps, member for editing heat pumps field standards, strong
and professional technical team
Our strong and professional technical and marketing team ready to
make best service!
Pre order(Inquiry progress):
Check with customer about usage, request specifications, enviroment
and other request
Make details proposal/offer to customer
Order Processing
Machine installed and tested by QA engineers.
Ensure all the products we provide are qualified and new. The
working life of the main engine is 15 years.
Construct and install the heat pump according to national relevant
policies strictly and ensure high quality delivery on time.
Test and debug the equipments strictly to ensure the safety and
stability.
During the delivery, provide comprehensive and professional
technical training on instructions and maintenance to customers
After sale service
2 years warranty
Feedback and solution will be provided within 1 working day
Free technical support!
Some specifications of Air to Water Source Heat Pump HVAC heating
System
Welcome to contact us for further details!
| Spec. | DKFXRS-19II/R | DKFXRS-38II/R | DKFXRS-95II/R | DKFXRS-190II/R |
| Nominal heating capacity at room temperature(kW) | 18.6 | 38.8 | 90 | 190 |
| Nominal heating at room temperature(kW) | 4.5 | 8.8 | 19.5 | 43 |
Low-temperature
nominal heating
capacity(kW) | 8.6 | 17.7 | 42 | 84 |
| Low temperature nominal heating(kW) | 3.7 | 7.35 | 16.3 | 32.6 |
| Maximum input power(kW) | 8.3 | 17 | 40 | 80 |
| Maximum current(A) | 15 | 30 | 88 | 176 |
| Power Specifications(Hz) | 380V3N ~ 50 | 380V3N ~ 50 | 380V 3N ~ 50 | 380V 3N ~ 50 |
| Refrigerant/charge amount | R22/6500g | R22/6700gx2 | R410A/8500gX2 | R410A/8500gX4 |
| noisedb(A) | <66 | <68 | <78 | <81 |
| Water resistancekPa | <100 | <100 | <100 | <123 |
| Anti-shock level | I |
| waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
Caliber of inlet
and outlet | DN32 | DN40 | DN50 | DN75 |
| Unit size (mm) | 780x820x1700 | 1550x780x1700 | 2206x1030x2170 | 2206x2020x2170 |
| Unit Weight(kg) | 263 | 431 | 750 | 1200 |
