Features of 96kw SPA Heating Pump Water Heater
Main functions
The heat dissipation structure of the swimming pool heat pump
variable frequency drive board used includes the air baffle and
electrical box components. The air baffle is installed in the box
of the swimming pool heat pump, and the box of the swimming pool
heat pump is divided into a fan cavity and a compressor cavity; the
electrical box The component is installed on the upper end of the
wind shield and at least partly located in the fan cavity. The heat
dissipation structure of a swimming pool heat pump variable
frequency drive plate designed in this design can effectively
improve the heat dissipation effect and increase the service life
of the variable frequency drive plate
The air conditioning device of the swimming pool heat pump hot
water unit uses the evaporator to exchange heat with the air in the
air outlet channel, and the dry air after the evaporator heat
exchange and dehumidification is blown into a building space,
thereby drying the human body in the building space , Solve the
problem of dryness of the human body after swimming and taking a
shower.
Company brief introduction
Over 20 years production experience, thanks to R&D hard and
smart working, company is authorized over 400 patents, products
quality play a lead role in HVAC system field
Leomon heat pump is also leader member for editting swimming pool
air source heat pumps stadnard, leader for HVAC system and heating
projects
Already service for many projects such as spa, villa, tourisa
spots,, hotels, hospitals, restarant, beauty care, etc
Our strong and professional technical and marketing team ready to
make best service!

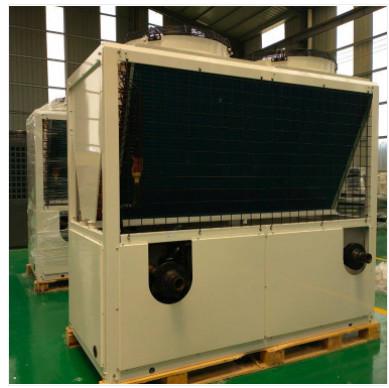

Technical paremeters of 96kw SPA Heating Pump Water Heater
| Constant temperature swimming pool heat pump |
| Spec. | KRY-96II |
| Rated heating capacity(A24/26oC) | 96kw |
| Rated power(kW) | 18.5 |
| COP | 5.41 |
| Rated heating capacityA20/26oC | 90kw |
| Rated power(kW) | 17.5 |
| COP | 5.14 |
| Cooling Capacity(kW) | 40 |
| Consumed Power(kW) | 18.2 |
| EER | 2.2 |
| Rated voltage(Hz) | 380V 3N-50HZ |
| Maximum input power(kW) | 24 |
| Maximum current(A) | 80 |
| Water flownWh | 32 |
| noise dB(A) | <69 |
| Anti-shock level | I |
| waterproof level | IPV4 |
| Unit size (mm) | 1550x1550x1700 |
| Unit Weight(kg) | 760 |
The nominal working conditions at room temperature are: ambient dry
bulb 20°C, ambient wet bulb 15°C, initial water temperature 15°C,
and ending water temperature 55. (2; The nominal low temperature
conditions are: ambient dry bulb 72, ambient wet bulb 61, initial
water temperature 15°C, and ending water temperature 55.
