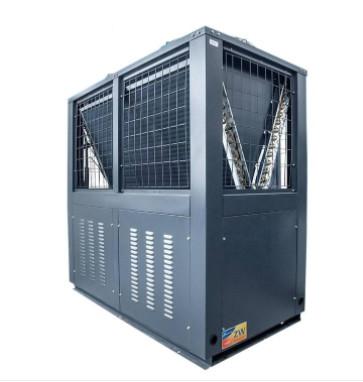

Bathroom EVI 30HP Spa Heat Pump Split 106.5KW 4.5 COP

Ask Lasest Price
Brand Name :	LN
Model Number :	DKFXRS-38II/CY
Certification :	CE ISO CCC
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	80000pcs/year
Delivery Time :	1-30 working days

Add to Cart

Product Details
Company Profile

Bathroom EVI 30HP Spa Heat Pump Split 106.5KW 4.5 COP

Features of 30HP 106.5 KW Split Heat Pump For Big Hot Water Requirement

The split heat pump shower room made of this heat pump includes a waste water recovery base, a shower room body arranged above the waste water recovery base, a hot water tank arranged outside the shower room body, and a heat pump system. The heat pump system includes a waste water recovery base. The heat pump evaporator in the recovery base, the heat pump condenser arranged in the hot water tank, the compressor connected to the condenser and the heat pump evaporator, the refrigerant throttling device connected to the heat pump evaporator, and the refrigerant throttling The refrigerant filter connected to the device is connected with the heat pump condenser; the compressor is installed on the outside of the shower room body, which reflects the high safety of the utility model.

For further specification of Inverter 30HP 106.5 KW Split Heat Pump For Big Hot Water Requirement Use and other specifications, welcome to contact us!

Unit type		SJKRS-106 IC
Specifications		30HP
Power supply		Three-phase five-wire380V/50Hz
Heating mode		Direct heat/cycle type
Standard working condition	Heating capacity( kw )	106.5
	Input Power(kW)	23.6
	COP	4.5
	Hot Water flow(m³/h)	2.29
High temperature condition	Heating capacity kw )	89
	Input Power(kW)	27.8
	COP	3.2
	Hot Water flow(m³/h)	1.02
Low temperature condition	Heating capacity( kw )	62.2
	Input Power(kW)	22.2
	COP	2.8
	Hot Water flow(m³/h)	1.16
Component Information	Size of water pipe joint	DN32
	Water heat exchanger	Plate or sleeve heat exchanger
	Air Heat Exchanger	Aluminum Fin for copper tube
	compressor type	Semi-closed reciprocating
	Operation Panel	Color touch screen
Maximum outlet temperature(℃)		90℃
Refrigerants		R744 (CO2 )
Design pressure(MPa)		High side 15, low side 8
Dimensions (length, width and height mm)		2670x1410x2150
Noise (dB)		70
Weight(kg)		1180
SCOPE of use	Feed water temperature(℃)	5~ 40
	Feed water pressure	0.05~ 0.4
	Effluent temperature(℃)	55~ 90
	Maximum flow	4.9
	Ambient temperature(℃)	’-20~43

3) low temperature working condition: ambient temperature DB-10 °C, using side initial water temperature 9 °C, termination water temperature 55 °c;2) high temperature effluent: Ambient Temperature DB 20 ° c/WB 15 ° C, using side initial water temperature 15 ° C, termination water temperature 90 ° c;
1) standard working conditions: ambient temperature DB 20 ° c/WB 15 ° C, using side initial water temperature 15 ° C, termination water temperature 55 ° c;

Some projects for 30HP 106.5 KW Split Heat Pump For Big Hot Water Requirement
