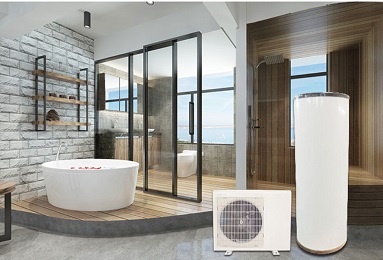

Domestic Air Source Heat Pump All In One Heat Cooling And Hot Water9DHW) With Enamel Water Tank
A household smart air energy heat pump system includes a water storage tank, the lower surface of the water storage tank is fixedly connected with a water storage tank chassis by bolts, and one side of the water storage tank is provided with an external water delivery pipe through which the external water delivery pipe penetrates The water stop valve is connected with a household faucet, a water storage tank drain port is arranged under the external water delivery pipe, a solar panel shaft is arranged on the other side of the water storage tank, and the water storage tank and the air energy heat pump body shell pass through The external interface of the air energy heat pump is fixedly connected with the external water delivery pipe, and the lower surface of the air energy heat pump body shell is fixedly connected with air energy heat pump support feet through bolts; the solar panel installed above the air energy heat pump body shell is designed to facilitate the absorption of solar energy This solves the problem that the casing of the air energy heat pump in the existing household smart air energy heat pump system is made of metal, which cannot absorb solar energy, which leads to a waste of resources.
We are proud to announce the launch of our new Inverter+ commercial range of inverter driven heat pumps
The largest capacity Inverter pool heat pump on the market
The leader for EVI air to water heatpumps factory
Over 300 patents, decades experience, patents parts intergration, flexible installtion, high COP, high effective
Heat pumps working very well till -30℃
Leomon heat pump allows to reduce up to 80% of the energy consumption of a house, using a renewable source of energy that minimizes the CO2 emissions to the environment.
Years of reserch and studying, Our R&D department was able to produce a very compact and easy to install heat pump keeping on it all the controls necessary to regulate your house temperature. our heat pumps is able to work in very extreme weather conditions(-30℃) keeping it's high performance.
An icing and antifreezing device for a casing heat exchanger and a
manufacturing method thereof are adopted, and belong to the field
of heat pumps. This
A tube-in-tube heat exchanger icing and anti-freezing device
includes a tube-in-tube heat exchanger composed of a concentric
inner tube and an outer tube, and a plurality of inflatable elastic
balls are arranged at equal intervals in the inner tube. The
inflatable elastic ball is a butyl rubber ball. The gas inflated
inside the inflatable elastic ball is nitrogen. Furthermore, the
inflatable elastic ball is adhered and fixed to the inner tube. The
diameter of the inflatable elastic ball is half of the diameter of
the inner tube. Furthermore, the total volume of the inflatable
elastic ball is 0.4 times the internal volume of the inner tube. It
can achieve the effects of not being easy to freeze and
anti-freezing, and has a simple structure and low cost.
Specification of Domestic Air Source Heat Pump All In One Heat Cooling And Hot Water9DHW) With Enamel Water Tank
Some photos projects of Domestic Air Source Heat Pump All In One Heat Cooling And Hot Water9DHW) With Enamel Water Tank
| Unit type | SJKRS-28 II/C | SJKRS-36II/C | SJKRS-55 II/C | SJKRS-73 I/C | SJKRS-106 IC | SJKRS-I60II /C | |
| Specifications | 7.5HP | 10HP | 15HP | 20HP | 30HP | 40HP | |
| Power supply | Three-phase five-wire380V/50Hz | ||||||
| Heating mode | Direct heat/cycle type | ||||||
| Standard working condition | Heating capacity( kw ) | 27.5 | 36.7 | 55.1 | 72.8 | 10.6.5 | 155.1 |
| Input Power(kW) | 6.1 | 8.2 | 13.7 | 16.1 | 23.6 | 34.5 | |
| COP | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | |
| Hot Water flow(m³/h) | 0.59 | 0.79 | 1.18 | 1.56 | 2.29 | 3.33 | |
| High temperature condition | Heating capacity kw ) | 23.9 | 28.5 | 51.5 | 59.5 | 89 | 13.1.5 |
| Input Power(kW) | 7.5 | 8.9 | 16.1 | 18.6 | 27.8 | 41.1 | |
| COP | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Hot Water flow(m³/h) | 0.27 | 0.33 | 0.59 | 0.68 | 1.02 | 1.51 | |
| Low temperature condition | Heating capacity( kw ) | 17.3 | 21.4 | 34.8 | 41.5 | 62.2 | 94.5 |
| Input Power(kW) | 6.2 | 7.6 | 12.4 | 14.8 | 22.2 | 33.8 | |
| COP | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | |
| Hot Water flow(m³/h) | 0.32 | 0.4 | 0.65 | 0.78 | 1.16 | 1.77 | |
| Component Information | Size of water pipe joint | DN20 | DN25 | DN32 | DN40 | ||
| Water heat exchanger | Plate or sleeve heat exchanger | ||||||
| Air Heat Exchanger | Aluminum Fin for copper tube | ||||||
| compressor type | Semi-closed reciprocating | ||||||
| Operation Panel | Color touch screen | ||||||
| Maximum outlet temperature(℃) | 90℃ | ||||||
| Refrigerants | R744 (CO2 ) | ||||||
| Design pressure(MPa) | High side 15, low side 8 | ||||||
| Dimensions (length, width and height mm) | 1450x950x1450 | 1600x950x1500 | 1850x1150x1900 | 2050x1150x1950 | 2670x1410x2150 | 2290x2270x1980 | |
| Noise (dB) | 56 | 59 | 62 | 67 | 70 | 70 | |
| Weight(kg) | 550 | 660 | 780 | 860 | 1180 | 221360 | |
| SCOPE of use | Feed water temperature(℃) | 5~ 40 | |||||
| Feed water pressure | 0.05~ 0.4 | ||||||
| Effluent temperature(℃) | 55~ 90 | ||||||
| Maximum flow | 1.2 | 1.5 | 2.4 | 3.2 | 4.9 | 6.5 | |
| Ambient temperature(℃) | ’-20~43 | ||||||
