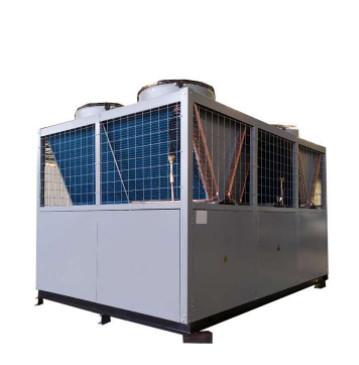

IPX4 Evi Chiller Heat Pump With R410A Scroll Compressors

Ask Lasest Price
Brand Name :	LN
Model Number :	KRY-24II
Certification :	CB, CE, EMC, RoHS
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50,000pcs/year
Delivery Time :	1-30 days

Add to Cart

Product Details
Company Profile

IPX4 Evi Chiller Heat Pump With R410A Scroll Compressors

Leomon heat pump energy-saving low-temperature heat pump water heater includes a low-temperature heat pump unit, a heater, and a diverter valve. One end of the heater is rotatably connected with an inlet pipe, one end of the inlet pipe is rotatably connected with a diverter valve, and the diverter valve is input A connecting pipe is welded and communicated with the outlet, a drainage pipe is welded and communicated with the water outlet of the diverter valve, one end of the pipe is snap-connected with the water outlet of the low-temperature heat pump unit, and the top of the low-temperature heat pump unit is welded with a heat preservation water tank. It is convenient to convert solar energy into electric energy to supply heaters and low-temperature heat pump units, which saves energy consumption. Through the installation of heat preservation water tanks and solar hot water pipes, it is convenient to absorb solar heat to initially heat water at room temperature, thereby reducing low-temperature heat pump The time for the unit to heat the water at room temperature saves the energy consumption of the low-temperature heat pump unit, thereby saving the energy consumption of the hot water machine

Spec.	DKFXRS-9I/CY	DKFXRS-11I/CY	DKFXRS-11II/CY	DKFXRS-16I/CY
Nominal heating at room temperature・(kW)	9.6	10.9	10.8	16
Nominal power consumption at room temperature(kW〕	2.17	2.63	2.7	3.9
Low temperature heating(kW)	4.1	4.65	4.8	7.8
Low temperature power consumption(kW)	1.85	2.1	2.16	3.37
Maximum input power(kW)	3	4.2	4.2	6.6
Maximum current(A)	16	23	8A	32
Power Spec.(Hz)	220V-50	220V-50	380V3N-50	220V-50
Refrigerant/charge amount	R22/2500g	R22/5600g	R22/5600g	R22/6000g
noisedb(A)	<55	<62	<62	<65
Water resistancekPa	<55	<55	<55	<100
Anti-shock level	I	I	I	I
waterproof level	IPX4	IPX4	IPX4	IPX4
Circulation port diameter	DN20	DN32	DN32	DN32
Unit size (mm)	1010x350x835	1030x410x1390	1030x410x1390	1030x410x1390
Unit Weight(kg)	87	142	142	148

Spec.	DKFXRS-16II/CY	DKFXRS-19II/CY	DKFXRS-38II/CY
Nominal heating at room temperature・(kW)	16.4	17.4	38.9
Nominal power consumption at room temperature(kW〕	4.1	4.6	8.82
Low temperature heating(kW)	7.5	8.5	17.6
Low temperature power consumption(kW)	3.4	3.68	7.3
Maximum input power(kW)	6.8	8.5	17
Maximum current(A)	12	15	30
Power Spec.(Hz)	380V 3N-50	380V3N-50	380V 3N-50
Refrigerant/charge amount	R22/6000g	R22/6500g	R22/6500gx2
noisedb(A)	<65	<66	<68
Water resistancekPa	£100	<65	<65
Anti-shock level	I	I	I
waterproof level	IPX4	IPX4	IPX4
Circulation port diameter	DN32	DN32	DN40
Unit size (mm)	1030x410x1390	780x820x1700	1550x780x1700
Unit Weight(kg)	149	265	435

FAQ:

Q1	How about your delivery time ?
A1	Generally, it will take 1 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2	What is your term of delivery ?
A2	EXW, FOB, CIF, etc
Q3	What is your terms of packing?
A3	Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.
Q4	What is your sample policy?
A4	We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5	Do you test all your goods before delivery?
A5	Yes, we have 100% test before we pack the goods for delivery
Q6	How long is the guarantee time?
A6	2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
