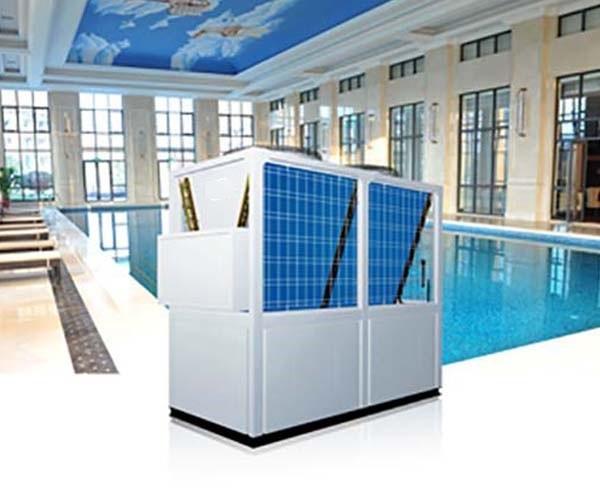

R410A A+++ ERP R32 DC inverter Swimming Pool Heat Pump Air to Water
Hot Water Heater Pump
Features of EVI air to water (air source)heat pumps:
It applies A low-temperature heat pump system enthalpy-increasing
auxiliary circuit control method, a low-temperature heat pump
system and its enthalpy-increasing auxiliary circuit structure
belong to the technical field of refrigeration air-conditioning and
low-temperature heat pumps. It solves the problem of high cost and
complicated control of the existing electronic expansion valve and
thermal expansion valve, and the use of a single capillary tube
method cannot solve the problem that the high exhaust gas under the
extreme working condition of high compression ratio may easily
cause an alarm. The enthalpy-increasing auxiliary circuit structure
in the low-temperature heat pump system includes an economizer.
The economizer main circuit inlet on the economizer and the
external water-side heat exchanger, and the economizer main circuit
outlet and the external air-side heat exchanger are separated from
each other. One-by-one sealed connection and so on through the main
line. The advantages of the low-temperature heat pump system's
enthalpy-increasing auxiliary circuit control method, the
low-temperature heat pump system and its enthalpy-increasing
auxiliary circuit structure are: it reduces the production cost due
to the use of electronic expansion valves and the logic control is
simpler, while reducing the high temperature caused by the use of a
single capillary tube. Probability of alarming when the exhaust gas
is too high under the extreme conditions of compression ratio
EVI air source heat pumps are designed for domestic/commercial hot
water and house heating in cold areas where lowest air temperature
is above -25℃.
R410A A+++ ERP R32 DC inverter Swimming Pool Heat Pump Air to Water
Hot Water Heater Pump
The casing of the unit is made of stainless steel anti-rust and
anti-corrosion material, which is durable, double-layer aluminum
foil fins for efficient heat dissipation and rapid defrosting.
The main engine adopts air supplementation and enthalpy technology,
which can operate normally at -30°C and good heating effects in
winter.
Imported electrical components have a failure rate as low as 0.1%.
The unit uses a special compressor for ultra-low temperature heat
pumps with a service life of more than 15 years.
R410A A+++ ERP R32 DC inverter Swimming Pool Heat Pump Air to Water
Hot Water Heater Pump
Company introduction:
Leomon technology rnjoy rich experience in supplying air source
heat pumps, supply its own brand and OEM for customers worldwide.
Keep working at technical and commercial ability, company is
athorized over 300 patents, norminated factory for supplying heat
pumps.
Quality Control:
100% products inspection before delivery, 3 phrases test to
guarantee right quality and quantity before delivery
Whole lifespan after sale service
Some specification as below:
| Spec. | DKFXRS-19II/R | DKFXRS-38II/R | DKFXRS-95II/R | DKFXRS-190II/R |
| Nominal heating capacity at room temperature(kW) | 18.6 | 38.8 | 90 | 190 |
| Nominal heating at room temperature(kW) | 4.5 | 8.8 | 19.5 | 43 |
Low-temperature
nominal heating
capacity(kW) | 8.6 | 17.7 | 42 | 84 |
| Low temperature nominal heating(kW) | 3.7 | 7.35 | 16.3 | 32.6 |
| Maximum input power(kW) | 8.3 | 17 | 40 | 80 |
| Maximum current(A) | 15 | 30 | 88 | 176 |
| Power Specifications(Hz) | 380V3N ~ 50 | 380V3N ~ 50 | 380V 3N ~ 50 | 380V 3N ~ 50 |
| Refrigerant/charge amount | R22/6500g | R22/6700gx2 | R410A/8500gX2 | R410A/8500gX4 |
| noisedb(A) | <66 | <68 | <78 | <81 |
| Water resistancekPa | <100 | <100 | <100 | <123 |
| Anti-shock level | I |
| waterproof level | IPX4 | IPX4 | IPX4 | IPX4 |
Caliber of inlet
and outlet | DN32 | DN40 | DN50 | DN75 |
| Unit size (mm) | 780x820x1700 | 1550x780x1700 | 2206x1030x2170 | 2206x2020x2170 |
| Unit Weight(kg) | 263 | 431 | 750 | 1200 |
