SS316 Residential 7.5KW Air Source Heat Pump With Radiators COP 5.1

Ask Lasest Price
Brand Name :	LN
Model Number :	KRY-24II
Certification :	CB, CE, EMC, RoHS
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50,000pcs/year
Delivery Time :	1-30 days

Add to Cart

Product Details
Company Profile

SS316 Residential 7.5KW Air Source Heat Pump With Radiators COP 5.1

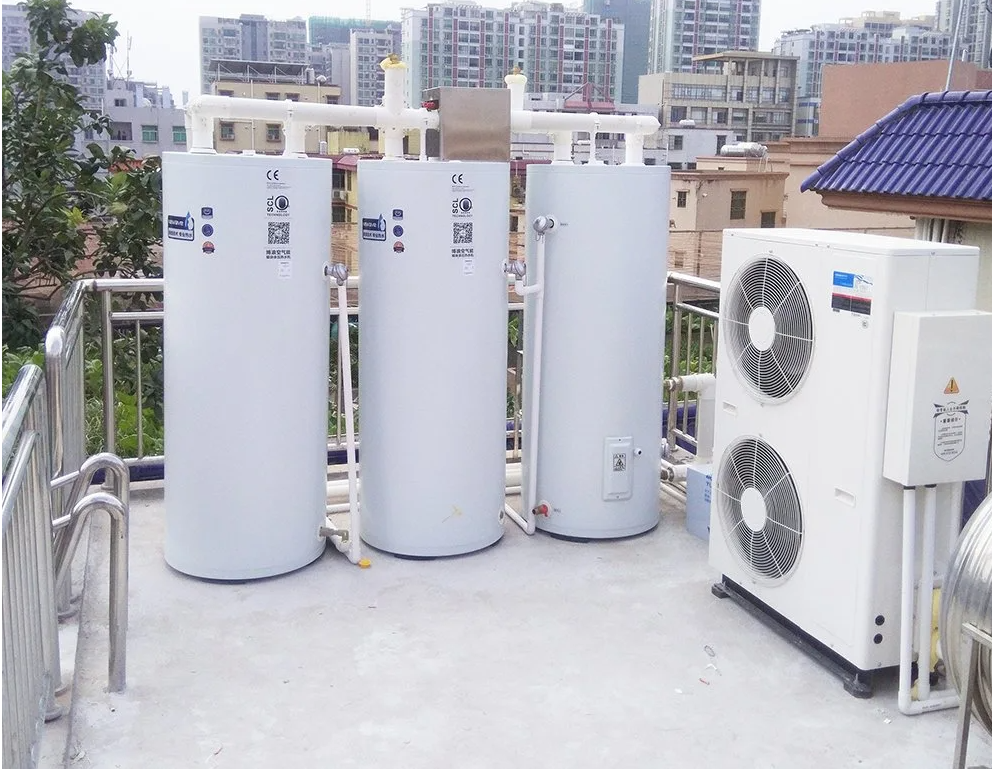

This energy-saving air energy heat pump water supply device is adopted, including a first water tank, a second water tank, an air energy heat pump, a circulating water pump, and a filter. The first water tank is connected to the air energy heat pump, and the right side of the air energy heat pump is also fixed. A second water tank is provided; the top of the air energy heat pump is fixedly provided with a circulating water pump, the suction port of the circulating water pump is connected with the heat exchanger of the air energy heat pump through a water pipe, and the drain is connected with the filter. The structure of the utility model is reasonable in design. By first heating the water with higher temperature and liquid level, the heat exchange rate can be increased, energy can be saved, and the working efficiency of the equipment can be effectively improved. The filter can effectively filter impurities such as scale in the water. Improve water quality; and through the probe and control valve, it can effectively avoid serious damage to equipment due to abnormal high and low pressure.

Constant temperature swimming pool heat pump
Spec.	KRY-8II	KRY-12II	KRY-24II	KRY-48II
Rated heating capacity(A24/26oC)	8kw	12kw	24kw	48kw
Rated power(kW)	1.56	2.35	4.7	9.3
COP	5.1	5.1	5.1	5.16
Rated heating capacityA20/26oC	7.5kw	11kw	21kw	44 kw
Rated power(kW)	1..5	2.3	4.5	8.6
COP	5	4.78	4.66	5.11
Cooling Capacity(kW)	3.8	5.7	11.3	23.7
Consumed Power(kW)	1.67	2.5	4.9	9.1
EER	2.3	2.3	2.3	2.6
Rated voltage(Hz)	220V 50HZ	220V 50HZ	380V 3N-50HZ	380V 3N-50HZ
Maximum input power(kW)	2	3	6	12
Maximum current(A)	8	12	24	42
Water flownWh	2.3	3.5	7	13
noise dB(A)	<50	<50	<65	<68
Anti-shock level	I	I	I	I
waterproof level	IPV4	IPV4	IPV4	IPV4
Unit size (mm)	910x350x835	1030x410x865	780x820x1700	1550x780x1700
Unit Weight(kg)	65	95	260	380

Constant temperature swimming pool heat pump
Spec.	KRY-96II	KRY-145II	KRY-220II
Rated heating capacity(A24/26oC)	96kw	145kw	220kw
Rated power(kW)	18.5	23.6	42.5
COP	5.41	6.14	5.17
Rated heating capacityA20/26oC	90kw	138kw	208kw
Rated power(kW)	17.5	24.1	41.5
COP	5.14	5.73	5
Cooling Capacity(kW)	40	58.1	98
Consumed Power(kW)	18.2	24.2	39
EER	2.2	2.4	2.5
Rated voltage(Hz)	380V 3N-50HZ	380V 3N-50HZ	380V 3N-50HZ
Maximum input power(kW)	24	36.5	61
Maximum current(A)	80	90	130
Water flownWh	32	41	62
noise dB(A)	<69	<71	<73
Anti-shock level	I	I	I
waterproof level	IPV4	IPV4	IPV4
Unit size (mm)	1550x1550x1700	2360x1550x1840	2206x2020x2170
Unit Weight(kg)	760	2100	4005

FAQ:

Q1	How about your delivery time ?
A1	Generally, it will take 1 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2	What is your term of delivery ?
A2	EXW, FOB, CIF, etc
Q3	What is your terms of packing?
A3	Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.
Q4	What is your sample policy?
A4	We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5	Do you test all your goods before delivery?
A5	Yes, we have 100% test before we pack the goods for delivery
Q6	How long is the guarantee time?
A6	2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
