Features of High Efficiency Air to Water Source Swimming Pool Hotel Heat Pump
Water Heater for Vietnam
Main features
Main functions
· Heating, cooling and hot water
There are 3 modes: heating , cooling and hot water.The combination
of the modes extends the utilization of Suoher DC inverter heat
pumps to the whole year. Users can choose the following modes.
-Heating
-Hot water
-Heating+hot water-Cooling
-Cooling +hot water

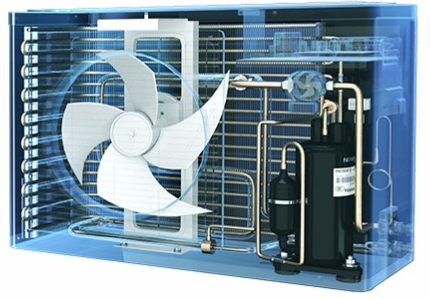

Circulating air energy heat pump water unit adopts Panasonic or
gluten compressor, four-way valve, expansion valve, the performance
of the unit is more superior, more stable; Microcomputer LCD
controller, no need for special care; Intelligent frost technology,
no pollution to the environment; Evaporator using hydrophilic
diaphragm, strong heat absorption, high efficiency, corrosion
resistance; Easy installation, small footprint, save investment.
Company brief introduction
Over 20 years production experience, thanks to R&D hard and
smart working, company is authorized over 400 patents, products
quality play a lead role in HVAC system field
Leomon heat pump is also leader member for editting swimming pool
air source heat pumps stadnard, leader for HVAC system and heating
projects
Already service for many projects such as spa, villa, tourisa
spots,, hotels, hospitals, restarant, beauty care, etc
We are China supplier for air source heat pumps, fan coil and
related HVAC products, used for swimming pool, hotel, hospital,
school,household,spa, wherever neeed hot water
Products series: swimming pool/spa air source heat pumps
All in one triple multifunctional heat pumps: heating(Central
heating ,floor heating, radient heating)+cooling+ hot water or
seperate function
Heat pumps water heater
as leader for air source heat pumps, decades experience,authorized
over100 patents, leader for swimming pool air source heat pumps and
other pumps, member for editing heat pumps field standards, strong
and professional technical team
Our strong and professional technical and marketing team ready to
make best service!
Pre order(Inquiry progress):
Check with customer about usage, request specifications, enviroment
and other request
Make details proposal/offer to customer
Order Processing
Machine installed and tested by QA engineers.
Ensure all the products we provide are qualified and new. The
working life of the main engine is 15 years.
Construct and install the heat pump according to national relevant
policies strictly and ensure high quality delivery on time.
Test and debug the equipments strictly to ensure the safety and
stability.
During the delivery, provide comprehensive and professional
technical training on instructions and maintenance to customers
After sale service
2 years warranty
Feedback and solution will be provided within 1 working day
Free technical support!
Technical paremeters of High Efficiency Air to Water Source Swimming Pool Hotel Heat Pump
Water Heater for Vietnam
| Item | KCHR-8I/BP
Side wind | KCHR-13I/BP
Side wind) | KCHR-15I/BP
Side wind |
| Rated voltage | 220V~50Hz | 220V~50Hz | 220V~50Hz |
| Cooling and heating | Nominal cooling
capacity | 7.8kW(2kW-9kW) | 13kW(3kW-15kW) | 14.5kW(4kW-16.5kW) |
Nominal cooling power
consumption | 2.77KW | 4.6KW | 5.27KW |
| Nominal cooling(COP) | 2.81 | 2.82 | 2.75 |
| IPLV | 4.11 | 4.13 | 4.02 |
| Nominal heating capacity | 8.4kW(2.5kW-9.6kW) | 14kW(3.5kW-16kW) | 17kW(4.3kW-18.5kW) |
Nominal heating power
consumption | 2.78KW | 4.5KW | 5.6KW |
| Heating | Nominal heating capacity | 6.8KW | 10.5KW | 13KW |
Nominal heating
power consumption | 1.75KW | 2.65KW | 3.3KW |
| Nominal heating(COP) | 3.88 | 3.96 | 3.93 |
| Maximum operating current | 20A | 33A | 41A |
| Maximum power consumption | 4KW | 6.6KW | 7.9KW |
| Rated water flow | 1.34m²/h | 2.24m²/h | 2.5m²/h |
| Refrigerant/charge volume | R410A/1750g | R410A/4000g | R410A/4000g |
| noise | ≤54dB(A) | ≤56dB(A) | ≤57dB(A) |
| Water resistance | ≤14kPa | ≤15kPa | ≤21kPa |
Maximum working pressure on low
pressure/high pressure side | 4.5Mpa/0.15Mpa | 4.5Mpa/0.15Mpa | 4.5Mpa/0.15Mpa |
Allowable working pressure on
suction/exhaust side | 4.5Mpa/0.15Mpa | 4.5Mpa/0.15Mpa | 4.5Mpa/0.15Mpa |
| Anti-shock level | I | I | I |
| waterproof level | IPX4 | IPX4 | IPX4 |
| Unit size (l× w × h) | 1030×410×865(mm) | 1030×410×1390(mm) | 1030×410×1390(mm) |
(Cold and warm) Caliber of inlet
and outlet | DN25 | DN32 | DN32 |
| (Hot water) Caliber | DN20 | DN25 | DN25 |
| Application area | 60㎡ | 100㎡ | 110㎡ |
