Why choose an air source heat pump?
Better comfort
The air source heat pump is suitable for installation in villas and
apartments. It has a "small" size and an installation area of
only 0.36 square meters, which does not occupy living space.
In summer, the outlet temperature of heat pump cooling can be kept
between 16-22°C. Compared with the traditional air-conditioning
cooling method, the body feels softer and more comfortable,
allowing the whole family to say goodbye to air-conditioning
illnesses.
In winter, the heat pump cooperates with the integrated underfloor
heating system to dissipate heat from bottom to top, avoiding the
problems of uneven and dry air from general air conditioners, and
ensuring that the indoor temperature and humidity reach a
comfortable balance for the human body.
In addition, when the temperature drops to about zero degrees,
frosting may occur outside the ordinary air conditioner. After the
air conditioner is started, the air conditioner needs to be
defrosted, resulting in a long time no warm air or even cold air.
With its strong heat storage capacity, the water system will start
warm air in winter, so there will be no cold wind or no warm air
for a long time, and it can also form a good complement to the
floor heating.
Cost-effective solution
Air source heat pump, 3 kinds of high-end heating and cooling
solutions, can meet users' different living spaces and needs.
Humanized design
The air-source heat pump has a sense of science and technology.
Through the control of the supporting thermostat, it can realize
the joint control of the heating and refrigerant air-conditioning
mainframe internal machines, and operate the whole house system;
the interface is simple to operate, super quiet, and quietly guards
the whole family. Comfortable and healthy.
The air source heat pump has multiple functions, high efficiency
and energy saving, and enjoys a warm and comfortable home life.
Description of Forced Air Heating Commercial Air Source Heat Pumps
An automatic exhaust device for an air source heat pump water
heater adopted by a heat pump belongs to the field of air source
heat pump water heater equipment. It includes a one-way valve and a
three-way joint, and also includes a water heater host, a hot water
tank, a cold water inlet pipe, and a water flow switch. The water
outlet of the water heater host communicates with the hot water
tank, and the top of the hot water tank is provided with hot water.
The water outlet, the one-way valve is connected to the hot water
tank, the horizontal right end interface of the three-way joint is
connected with the one-way valve, the horizontal left end interface
of the three-way joint is connected to the water inlet of the water
heater, and the vertical interface of the three-way joint Connect
with the cold water inlet pipe. It realizes the automatic exhaust
function, so that the main body of the water heater avoids the
phenomenon of high-pressure protection, and enhances the
reliability of installation. The gravity-type one-way valve relies
on the gravity of the valve flap to seal to prevent the water from
flowing back, and the hot and cold water will not mix. This will
not cause energy waste, so that cold and hot water can be stored in
separate silos, ensuring the continuous supply of hot water
Application of air source heat pumps
Air Source Heat Pump Air Conditioning provide house heating and hot
water,wherever need hot water, energy saving and more economical,
not feel dry,it is widely use in hospital,sauna,factory,commercial
centre,slaughter, swimming pools, spas, etc
Company introduction
Decades production experience, its own labotory, over 380patents,
norminated supplier for buildings, leader member for ediiting air
source heat pumps standard, about 80000pcs air to water heat pumps
production capacity a year!
Quality control:
100% inspection for each product, 3 phrases test before delivery,
free spares supply, good prize if found any unqualified items
Production line:
3 production lines to guarantee production capacity and quick
delivery, 2 shifts working

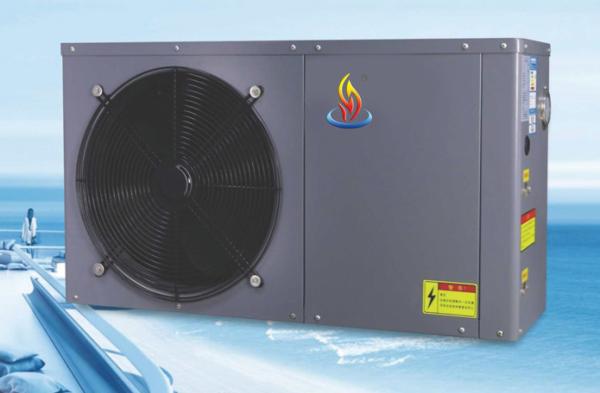

Technical paremeters of Spa Heater Air Source Heat Pump Mini Split
Ac
| Spec. | KFXRS-11II/CY |
| Nominal heating capacity at room temperature(kW) | 10.8 |
| Nominal input power at room temperature(kW) | 2.7 |
| Rated voltage(Hz) | 380V3N-50 |
| Low temperature heating(kW) | 8.8 |
| Low temperature input power(kW) | 2.65 |
| Maximum input power(kW) | 4.2 |
| Maximum current(A) | 8 |
| noisedb(A) | <63 |
| Anti-shock level | I |
| waterproof level | IPX4 |
| Caliber of outlet | DN20 |
| Unit size (mm) | 1030x410x865 |
| Unit Weight(kg) | 88 |
Nominal heating conditions at room temperature: environmental dry
bulb 20C, environmental wet bulb 15C, initial water temperature
15C, termination water temperature 5C. Low temperature heating
conditions: environmental dry bulb 7C, environmental wet bulb 6'C,
initial water temperature 15'C, stop water temperature 55C.
