Application of Air Source Heat Pump swimming pool heater and
cooling indoor and outside DC inverter commercial and domestic
usage hotel : swimming pool constant temperature, aquaculture
heating
Product introduction: the pool heat pump adopts Panasonic or gluten
compressor, the unit performance is more advantageous, more stable;
Microcomputer LCD controller, no need for special care; Intelligent
frost technology, defrosting more safety, higher unit efficiency;
Low mute operation, without any pollution to the environment, the
method generator adopts hydrophilic diaphragm, strong heat
absorption, high efficiency, corrosion resistance; The condenser
coil is made of titanium alloy material, stainless steel shell,
high temperature resistance, corrosion resistance, easy
installation, small occupation area and saving investment.
Strength of the swimming pool heat pumps
Environmental protection: The application of air energy heat pump
does not consume coal and fuel, and there is no need to worry about
coal prices, fires and explosions
Higher energy saving and more money saving: The heating efficiency
of ordinary air energy heat pumps is generally 400%, which is 4
times that of ordinary electric water heaters. However, since the
outlet temperature of the swimming pool air energy heat pump is
only 28, which is lower than the ordinary air energy heat pump, the
heating efficiency is as high as 520%, which is more
energy-efficient to use.
The temperature control is accurate and more comfortable: the
air-energy swimming pool system has a wider temperature operating
range, and can automatically adjust the flow according to the
ambient temperature and water temperature data to ensure the stable
operation of the unit. Moreover, it is not affected by natural
climates such as wind, light, rain, and snow, and the swimming pool
can be kept constant throughout the year.
Due to the various advantages of air energy heat pump swimming pool
dedicated systems, air energy heat pumps have been used in many
newly built swimming pools, fitness and competition venues in
recent years.
The swimming pool heat pump adopts the heat dissipation structure
of the variable frequency drive board, including the air baffle and
the electrical box components. The air baffle is installed in the
box of the swimming pool heat pump to separate the box of the
swimming pool heat pump into a fan cavity and a compressor cavity;
the electrical box is practical A new type of heat dissipation
structure of the variable frequency drive plate of a swimming pool
heat pump can effectively improve the heat dissipation effect and
increase the volume of the variable frequency drive plate.Some technical paremeters of Air Source Heat Pump swimming pool heater and cooling indoor and
outside DC inverter commercial and domestic usage hotel :
| Model | KFD110 (KF110) |
| Heating capacity | 5kw |
| Nominal yield of hot water | 99L/h |
| Refrigerant/injection | R22/1700g |
| Rated input power | 1.15kW |
| Maximum input power of the machine | 3.35/1.75kW |
| Power consumption by electric heating | 2.0kW |
| rated current | 5.3A |
| Electric heating consumes current | 9.1A |
| Maximum input current of complete machine | 17.1/8.0A |
| Types of protection against electric shock | I |
| Water proof grade | IPX4 |
| Noise | ≤52dB (A) |
| Suction/exhaust side allows working overpressure | 1.2/2.8MPa |
| Maximum operating overvoltage of heat exchanger | 2.8MPa |
| Rated voltage/frequency | 220V/50Hz |
| Weight | 35kg |
| Dimension | 760×260×540mm |
| Water tank | 200L |

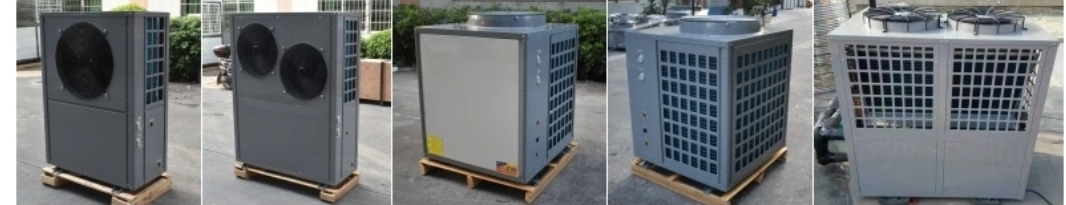

Some of our projects 5kw swimming pool air source heat pump instant
hot water
Welcome to contact us for further details!
