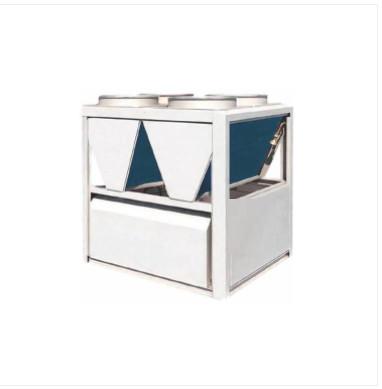

Aquaculture Constant Temperature Air Energy Source Heat Pump Air To
Water
Application: mariculture, freshwater aquaculture, aquarium,
ornamental fish aquaculture
Features of Aquaculture Constant Temperature Air Energy Source Heat Pump Air To
Water:
hot and cold water aquaculture constant temperature air can heat
pump through the output, the aquaculture water temperature control
in 7 ~ 45 degrees, electronic temperature control technology, the
water temperature control precision is high, the built-in line
controller, set water temperature after the units will be according
to the water temperature automatic cooling or heating, suitable for
most of the fish growth temperature, the unit using titanium tube
heat exchanger corrosion resistance is strong, avoid to produce
chemical reaction with the sea.
Modular control system reduces energy loss
The host provides moderate energy requirements according to the
end, reducing unnecessary energy loss.
Leomon air source heat pump Company introduction
20 years of professional heat pump system technology excellence
We give full play to the advantages of scientific and technical
personnel, and constantly overcome the technical bottlenecks in the
field of air energy water heater. We have obtained 120 invention
patents, more than 350 other patents, and participated in the
preparation of 25 national standards.
Company invest over 20% into products and service imporovement
everyear to meet various customer request
We are happy to say"We cannot promise that equipment won't break,
that software won't fail, or that we will always be perfect. What
we can promise is that if something goes wrong, we will rise to the
occasion, take action, and resolve the issue."
Some paremters of Aquaculture Constant Temperature Air Energy Source Heat Pump Air To
Water:
| Item | KFXRS-28II | KFXRS-42II | KFXRS-56II | KFXRS-90II | KFXRS-100II | KFXRS-170II |
Nominal heating capacity
at room temperature(kW) | 28 | 42.5 | 56 | 90 | 100 | 170 |
Nominal input power
at room temperature(kW) | 6.2 | 9.2 | 12 | 19.5 | 21.5 | 38 |
| Rated voltage(Hz) | 380V3N-50 | 380V3N-50 | 380V3N-50 | 380V3N-50 | 380V3N-50 | 380V3N-50 |
Low temperature
nominal heatingWkW) | 23 | 34.5 | 45 | 73 | 81 | 138 |
Low temperature
nominal input power(kW) | 6.18 | 9.1 | 11.5 | 19 | 21 | 37.8 |
| Maximum input power(kW) | 8 | 16 | 21.3 | 40 | 45 | 65 |
| Maximum current(A) | 13 | 24.5 | 30 | 88 | 90 | 90 |
| noisedb(A) | <62 | <62 | <62 | <78 | <78 | <68 |
| Anti-shock level | I |
| waterproof level | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Caliber of inlet and outlet | DN32 | DN40 | DN40 | DN50 | DN50 | DN80 |
| Unit size (mm) | 820x780x1700 | 1550x780x1700 | 1550x780x1750 | 2206x1030x2170 | 2206x1030x2170 | 2360x1550x1840 |
| Unit Weight kg) | 260 | 400 | 400 | 750 | 750 | 1050 |
